 Post subject: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 2:02 am
User avatar

I Say: Go Hard Keyboard Warriors !!
Vehicle: Subaru フォレスターSTI 04 SG9

Posts: 3784
Location: Mackay, QLD
Ok, so I've done this to the Forester as it should have been done by the factory.

Overview:
The whole point was to introduce more light into the cabin when the doors are opened. I wanted to retain full independent use to both Map Reading Lights when the doors were shut, and have them both come on when any door is open. This method also allows the Main Interior Light to be switched to the ON position at any stage without bring on either of the Map Reading Lights.

For the sole purpose of being lazy, I will refer Map Reading Lights to MRL and Main Interior Light to MIL

Also Note:
Plastic Trim's are easily scratched these days, if you only have a small flat head screwdriver, use an old ATM card or gym membership card to limit damage to your trim's

What You Need:

    Soldering Iron & Solder
    Electrical Tape
    3mm Wire Approx 1m Length, depending on if you have sunroof
    Small Flathead Screwdriver or Plastic Trim Removal Tool
    Old Plastic Card - ATM, Credit Card, Gym Membership, etc...
    Medium Size Phillips Head Screwdriver
    Small Needle or Spike ( to swap two wires in a plug connector )
    2 Small Diodes 3amp is plenty
    1 Hour

Step 1:
Using a small flathead screwdriver or plastic trim removal tool, carefully pry the clear plastic cover off the MIL

Step 2:
Once removed, you will see TWO self tappers, remove both self tappers & place into cup holder, then carefully lower MIL down and disconnect wiring connector.

Step 3:
Carefully solder a 3mm wire to the YELLOW wire ( 3rd from left ) on the switch side of the MIL, cut wire off at approx 50cm ( if you have sunroof allow more as the MIL will be further back )

Step 4:
Now go to the front of the car, and open the smaller sunglass holder flap. This will reveal the first of 3 self tappers required to lower the centre roof console.

Step 5:
Now using a small flathead screwdriver or plastic trim removal tool, carefully remove MRL Cover

Step 6:
This will now reveal the two remaining self tapping screws that need to be removed in order to lower the whole MRL Console. Pull down at the front, then slide forward towards the windscreen to remove console without damaging the plastic locating tabs at the rear of the console

Step 7:
Once the MRL Console is down, disconnect the two pin plug and take to your working bench.

Step 8:

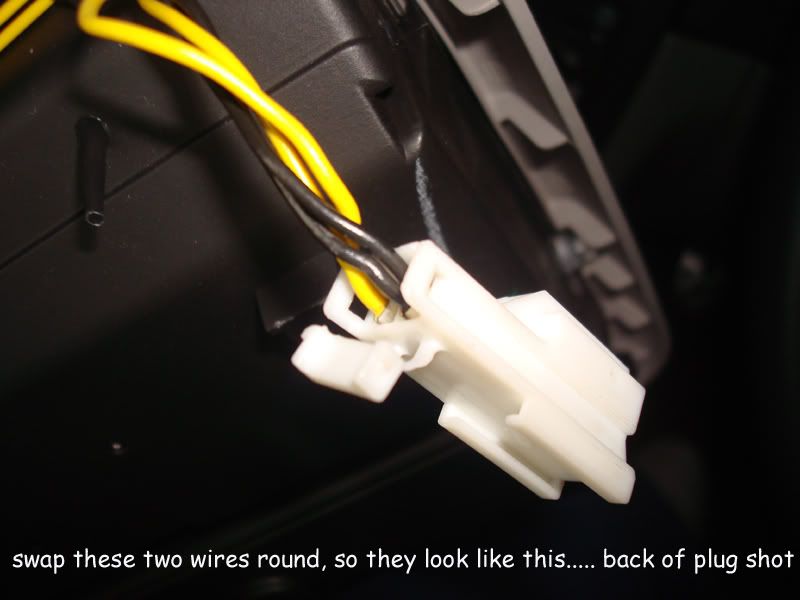

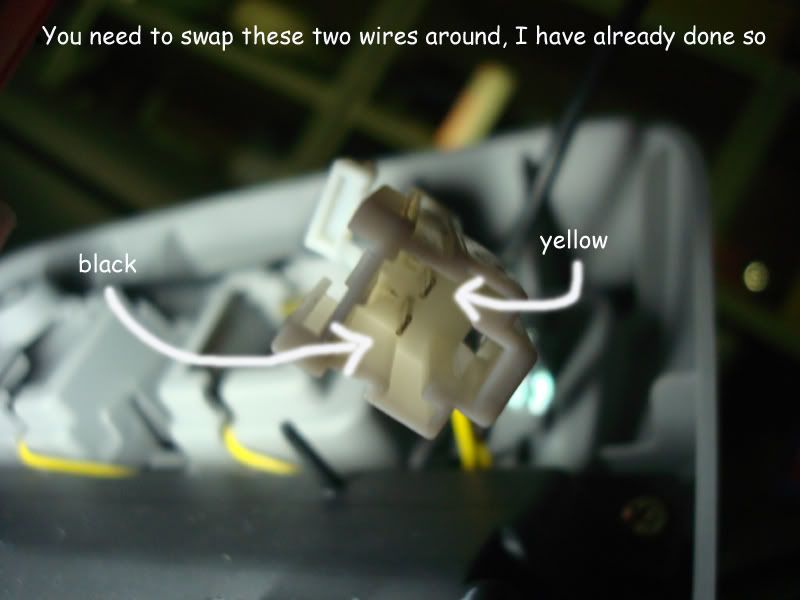

Using your spike/small needle, carefully open the back of the two pin connector plug by flicking the tabs out at either end. ( in the pic you will see the yellow and black wires, this is how they should end up in the plug... )

You will need to push the white locking tabs out of the way, then carefully pull the terminal out of its location and swap the two wires over


Once these two wires have been swapped over, you can push them back into the connector, and return the back of the two pin connector plug into its locking tabs & return to mounting base on MRL Console

YELLOW WIRE of MRL should connect to BLUE WIRE of HARNESS
BLACK WIRE of MRL should connect to BLACK WIRE of HARNESS

Step 9:

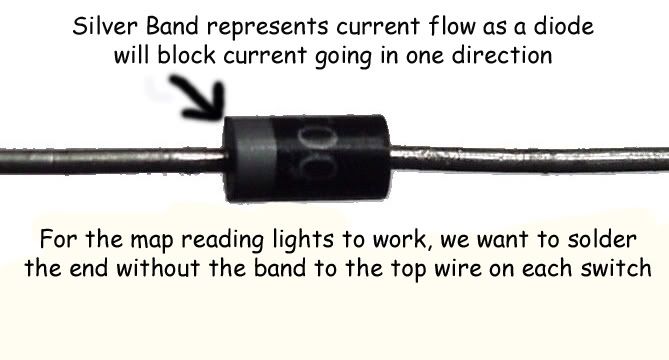

Info about diodes

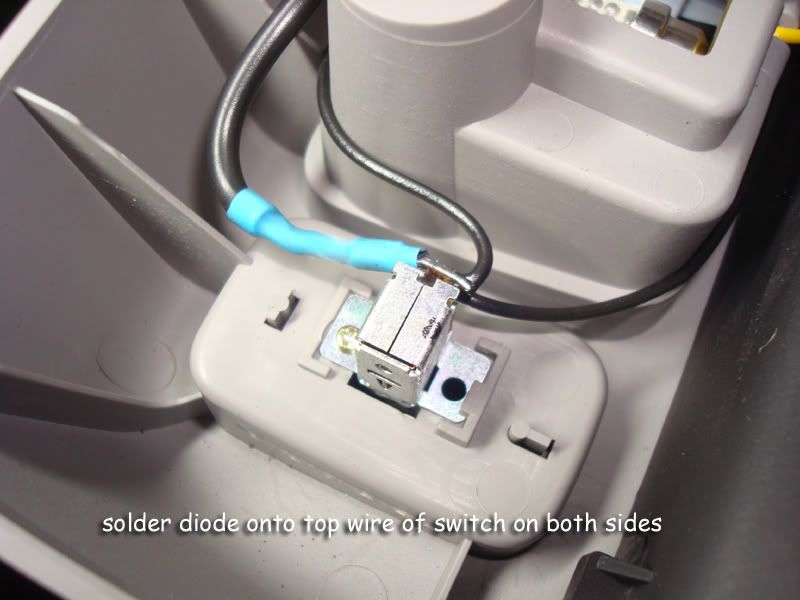

Now get your two diodes, solder the end without the band to each of the MRL switches, when looking at it from the top, the switch contact that is closest to you.


Step 10:
Now solder the wire from the MIL to the other end of each diode & tape up ( you will see how I've run my wires in the pic below

Step 11:
Now plug the two pin connector of the MRL back in and test....

Step 12:
Now that everything is working, refit MRL Console back into roof cavity, and replace all three self tappers, refit MRL Globe Covers & close Sunglass Holder

Then refit MIL back into position with two self tappers, then replace Globe Cover and clip into place.

Step 13:
With door closed and lights all off, operate each MRL independently and check.

Will door closed and lights all off, then open any door and MRL's and MIL should illuminate.

Shut door, and after 35-40 seconds, all lights should extinguish

Step 14:
Pack up equipment and pat yourself on the back....

_________________
Now
2004 Subaru Forester STI - JDM571
Before
2006 Subaru STI Forester - PHA745


Last edited by Bye Evo on Sun Jul 01, 2012 9:05 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 8:39 am
User avatar

Vehicle: MY07XT - Black

Posts: 225
Location: Maroubra, NSW
OMG that is tops... thanks a million.. going to get the bits and pieces tonight... woo hoo


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 8:55 am
User avatar

Vehicle: Evo IX GT wagon

Posts: 5278
Location: ACT
Cool DIY 8-)
thanks Chris

_________________
My Evo Wagon gallery
My STI Foz gallery
My EVO sedan gallery

www.instagram.com/uzumaki.garage


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 9:19 am
User avatar

Vehicle: CX9 GT

Posts: 9183
Location: Newport, Victoria
Cheers Chris...Love your work


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 10:34 am
User avatar

I Say: I am a Subarist!
Vehicle: 06 JDM STi Foz

Posts: 1970
Location: Sydney
Great idea, thanks for sharing.
Speaking of diodes, what brand of replacement LEDS are you using in the pics?

_________________
CIRCUIT CLUB 2018 Upcoming Events


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 10:51 am
User avatar

I Say: Skids are for bicycles.
Vehicle: Low runnin MY04 XT - Silver

Posts: 985
Location: Sydney
Your a champ chris, i was hoping youd post this up soon.

_________________
Natural Aspiration - The best type of Aspiration (unless you add boost, then chizam)


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 2:18 pm
User avatar

I Say: \,,/ (^_^) \,,/
Vehicle: My01 00 Limited Silver

Posts: 417
Location: Gold Coast QLD
LEGEND!

_________________
Check out my car


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 2:36 pm
User avatar

I Say: I say I say I say I say I say I say I say I say I say I say
Vehicle: MY11 S Edition Steel Silver

Posts: 2591
Location: Sydney Australia
I think that the SF requires a slightly different mod as the thread title is specific to SG9, Chris can confirm this.

Cheers

John

_________________
apg39 wrote:
Not in the radiator, I recommend putting them in the cats bum, guarantee it will go 0-100km/h in 2 seconds flat.

Sackster wrote:
We are just crazy. That's all.


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 2:41 pm
User avatar

I Say: Go Hard Keyboard Warriors !!
Vehicle: Subaru フォレスターSTI 04 SG9

Posts: 3784
Location: Mackay, QLD
Its same principal John, but slightly different configuration.

I've forgotten since I did the original PH47 AS afew years ago now.

_________________
Now
2004 Subaru Forester STI - JDM571
Before
2006 Subaru STI Forester - PHA745


Top
 Profile

 Post subject: Re: DIY 4 SG9 - Linking Map Lights to Main Interior Light
PostPosted: Tue Aug 04, 2009 2:46 pm
User avatar

I Say: Go Hard Keyboard Warriors !!
Vehicle: Subaru フォレスターSTI 04 SG9

Posts: 3784
Location: Mackay, QLD
Carsubie, I'm just using replacement festoon LED's I bought off ebay, they do the job, but dont offer a huge amount of extra light.

I have a square LED panel which has two wires running out the side, which then adapts to a different number of fitments ready to go in, just been too lazy to do it.
